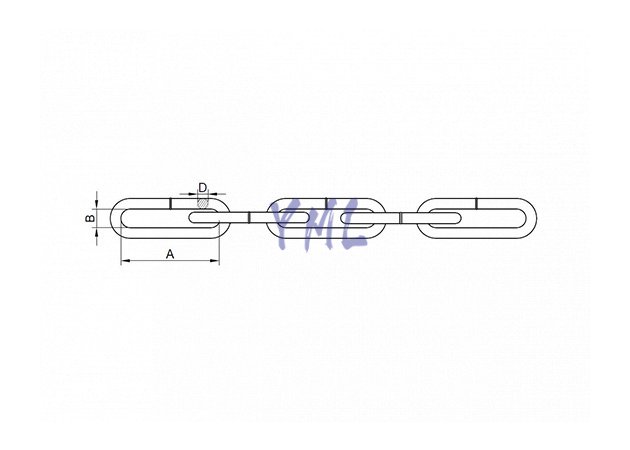

| Art No. | Trade Size | Diameter | Inside Length | Inside Width | Working Load Limit(max) | Proof Test(min) | Min Breaking Load | |||||||
| D | A | B | ||||||||||||
| mm | No. | mm | inch | mm | inch | mm | inch | kg | lb | kn | lb | kn | lb | |
| CH11-3.0 | 3.0 | 4 | 3.0 | 0.120 | 28.1 | 1.11 | 5.32 | 0.21 | 93 | 205 | 1.82 | 410 | 3.64 | 820 |
| CH11-3.4 | 3.4 | 3 | 3.4 | 0.135 | 29.8 | 1.17 | 6.09 | 0.24 | 116 | 255 | 2.27 | 510 | 4.53 | 1020 |
| CH11-3.8 | 3.8 | 2 | 3.8 | 0.148 | 29.9 | 1.18 | 6.59 | 0.26 | 141 | 310 | 2.76 | 620 | 5.51 | 1240 |
| CH11-4.1 | 4.1 | 1 | 4.1 | 0.162 | 31.7 | 1.25 | 7.10 | 0.28 | 168 | 370 | 3.29 | 740 | 6.58 | 1480 |
| CH11-4.5 | 4.5 | 1/0 | 4.5 | 0.177 | 31.7 | 1.25 | 7.86 | 0.31 | 200 | 440 | 3.91 | 880 | 7.82 | 1760 |
| CH11-4.9 | 4.9 | 2/0 | 4.9 | 0.192 | 31.9 | 1.26 | 8.62 | 0.34 | 236 | 520 | 4.63 | 1040 | 9.24 | 2080 |
| CH11-5.3 | 5.3 | 3/0 | 5.3 | 0.207 | 32.9 | 1.30 | 9.13 | 0.36 | 274 | 605 | 5.38 | 1210 | 10.76 | 2420 |
| CH11-5.5 | 5.5 | 4/0 | 5.5 | 0.218 | 35.2 | 1.39 | 9.64 | 0.38 | 304 | 670 | 5.96 | 1340 | 11.91 | 2680 |
| CH11-6.4 | 6.4 | 5/0 | 6.4 | 0.250 | 38.5 | 1.52 | 11.20 | 0.44 | 399 | 880 | 7.83 | 1760 | 15.64 | 3520 |
